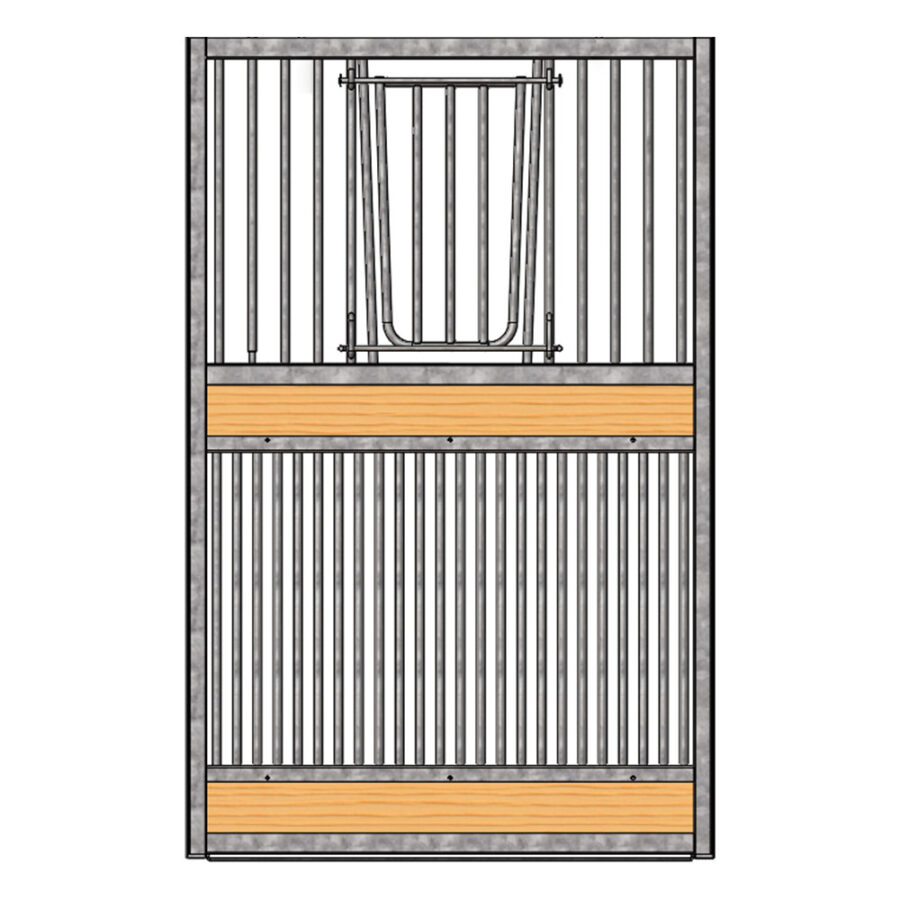

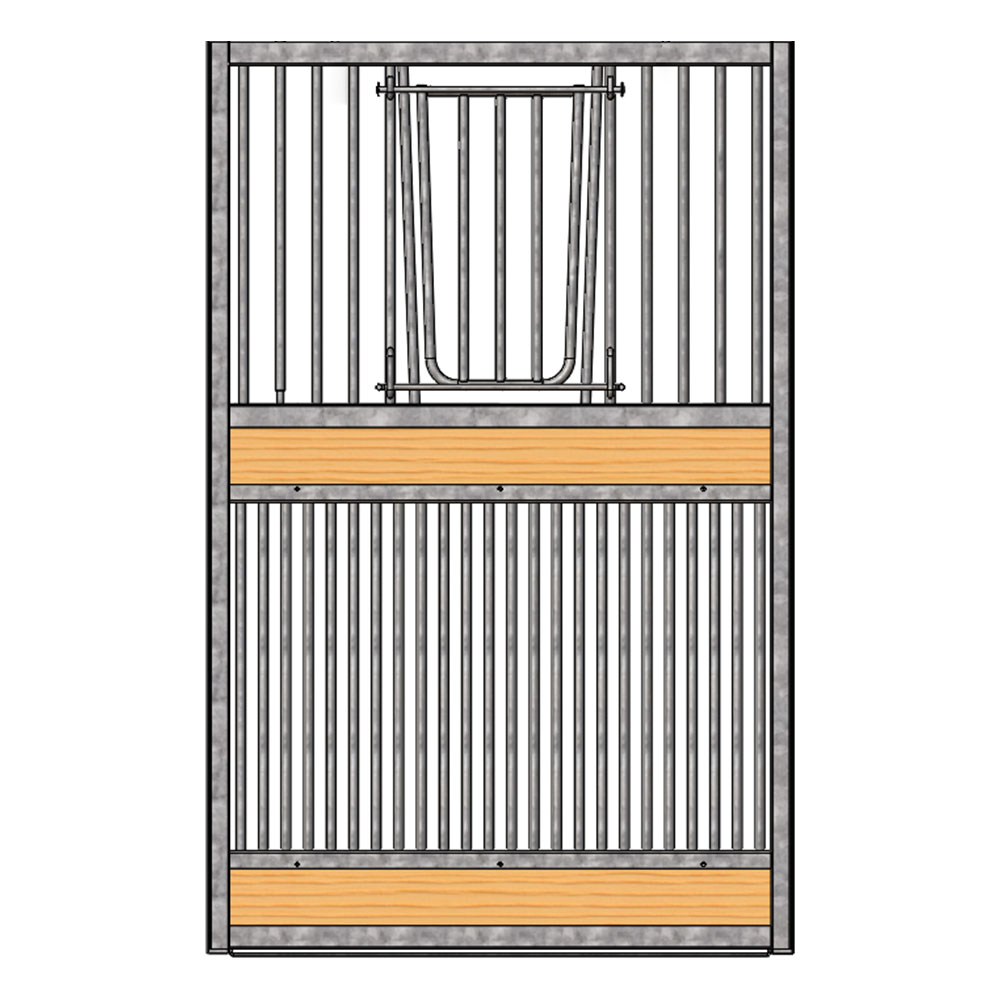

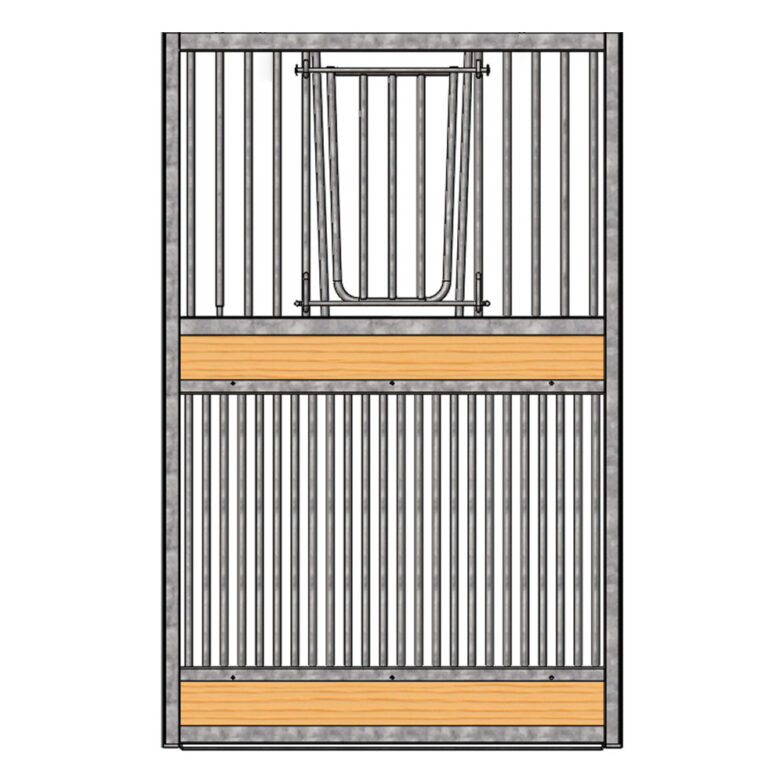

Dublin Full Grill V-Door

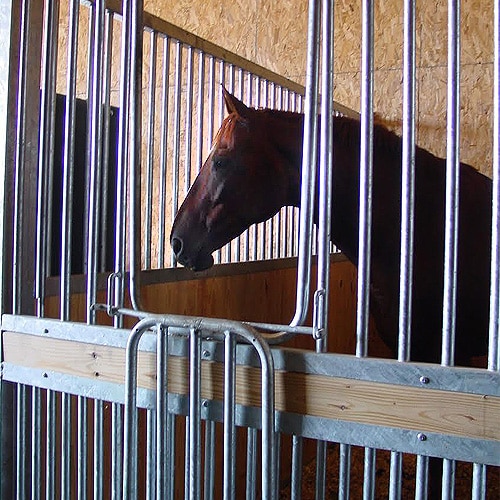

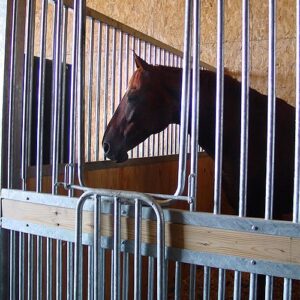

The Dublin full grill v-door allows horses to socialize and helps with boredom. The one piece welded frame helps for easier installation. The v-door also allows for greater ventilation. Closer bottom bar spacing helps to have safer stalling. V-door insert option available.
Compatibility: Dublin Stalls
[yith_wcwl_add_to_wishlist]
The Dublin full grill v-door allows horses to socialize and helps to relieve boredom in the stall. Constructed of hot-dip galvanized steel, 14-gauge frame and features hidden interior welds with better rust protection. RAMM has the industry’s premier hot-dip galvanization for horse stalls.
Finish: Hot-Dip Galvanized RAMM has the industry’s premier hot-dip galvanization for horse stalls.
Channel Gauge: 14-gauge
Frame Gauge: 2″ x 2″ 14-gauge
Door Gauge: 1-3/4″ x 1-3/4″ 14-gauge
Bar Gauge: 16-gauge
Full Grill Door Bottom Bars Gauge: 14-gauge
Bar Spacing: 3-1/4″
Bar Diameter: 7/8″
Bar Height: 33″
Door Width: 51-1/2″
Door Opening Width (Standard): 48″
Door Height: 80-3/8″
Floor to Top of Header: Top of Front is 84″, Top of Front with Track Piece is 85-3/8″
Floor to Bottom of Bars: 48-5/8″
Latch Type: Up Latch
Post: Door Stop (*Varies by layout.)
Guide: Door Stay
Track: 8′ Premium Track
Wood Direction: Vertical (Note: You supply the wood to save with freight costs.
Shipping: This item ships via an LTL freight carrier, accurate shipping costs cannot be calculated on our ecommerxe site. Please contact one of our account manager at 1-800-434-6296 for shipping details. For more information on LTL shipping requirements follow the links below.
Warranty: 1-Year Warranty on Workmanship.
Made in the USA.
Below are links to installation instructions and literature regarding Dublin horse stalls. They are in a PDF format, which you can save and print for future reference:
Dublin Stall Installation Instructions
Portable Panel Stall Installation Instructions – Square Track System
