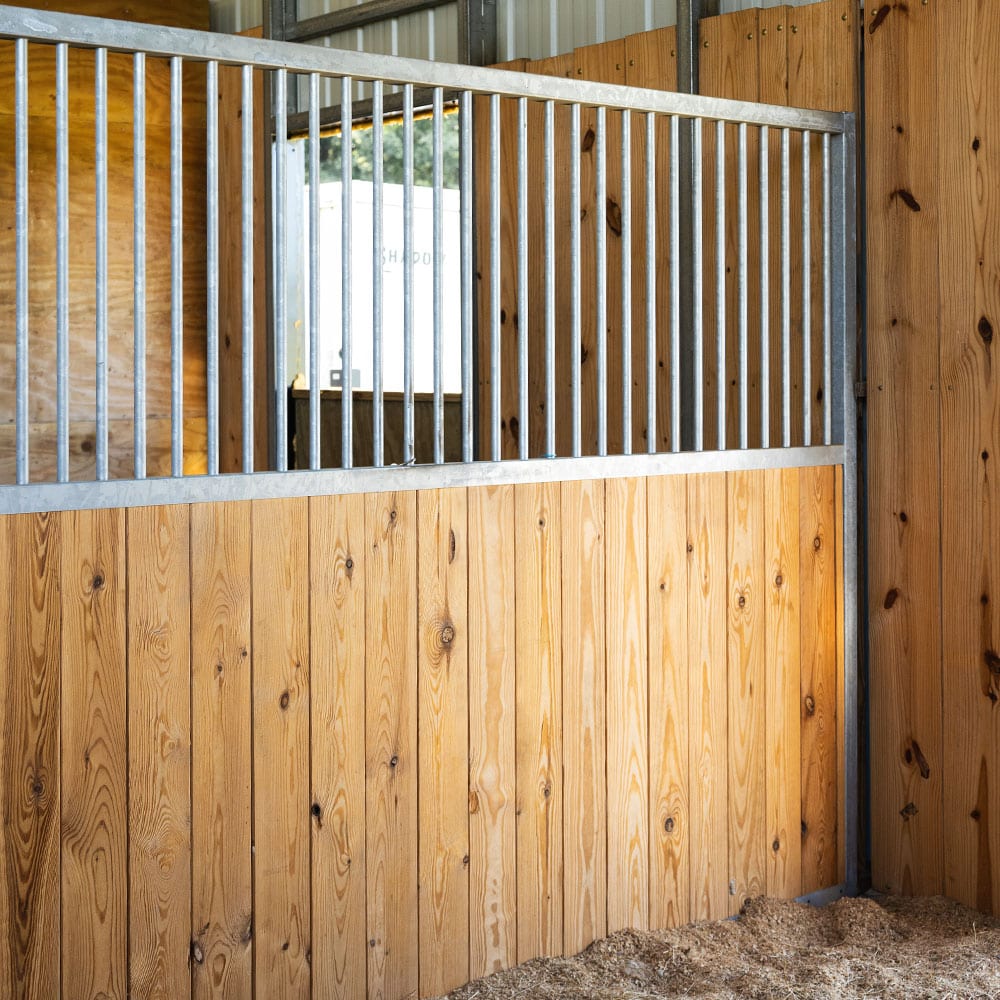

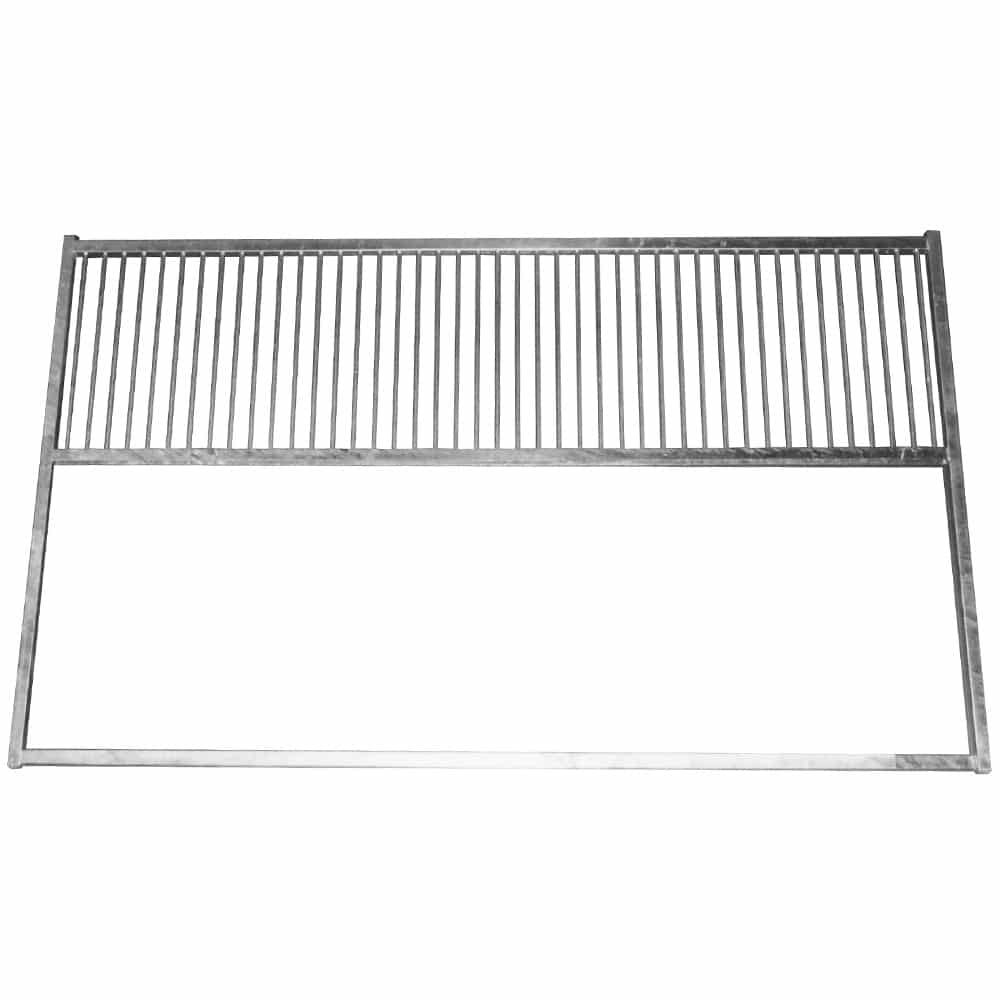

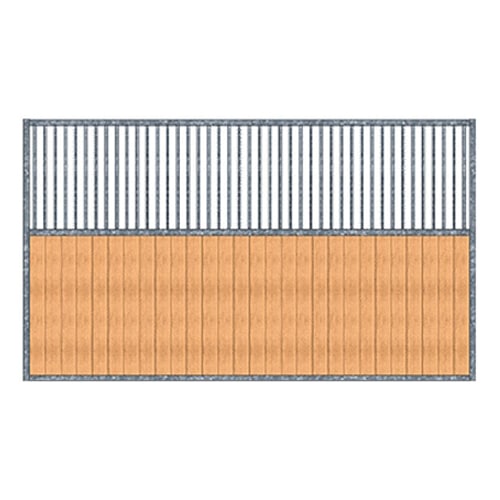

Dublin Stall Grilled Partition
The Dublin stall grilled partitions offer your horses both socialization and ventilation, for better health. Constructed one piece frame that is hot-dip galvanized steel for better rust protection. Ready to load 2″ x 6″ tongue and grove boards in the channeling for ease of installation.
Compatibility: Dublin Stalls
[yith_wcwl_add_to_wishlist]

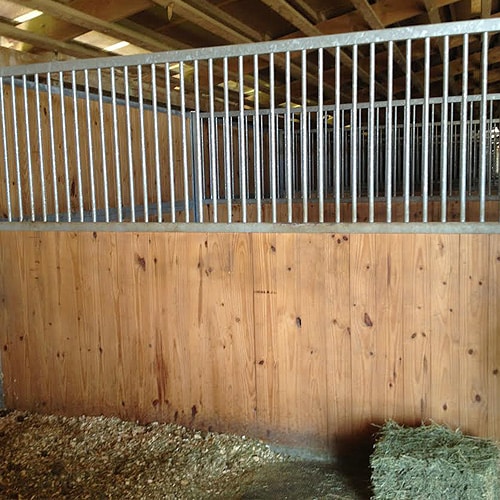

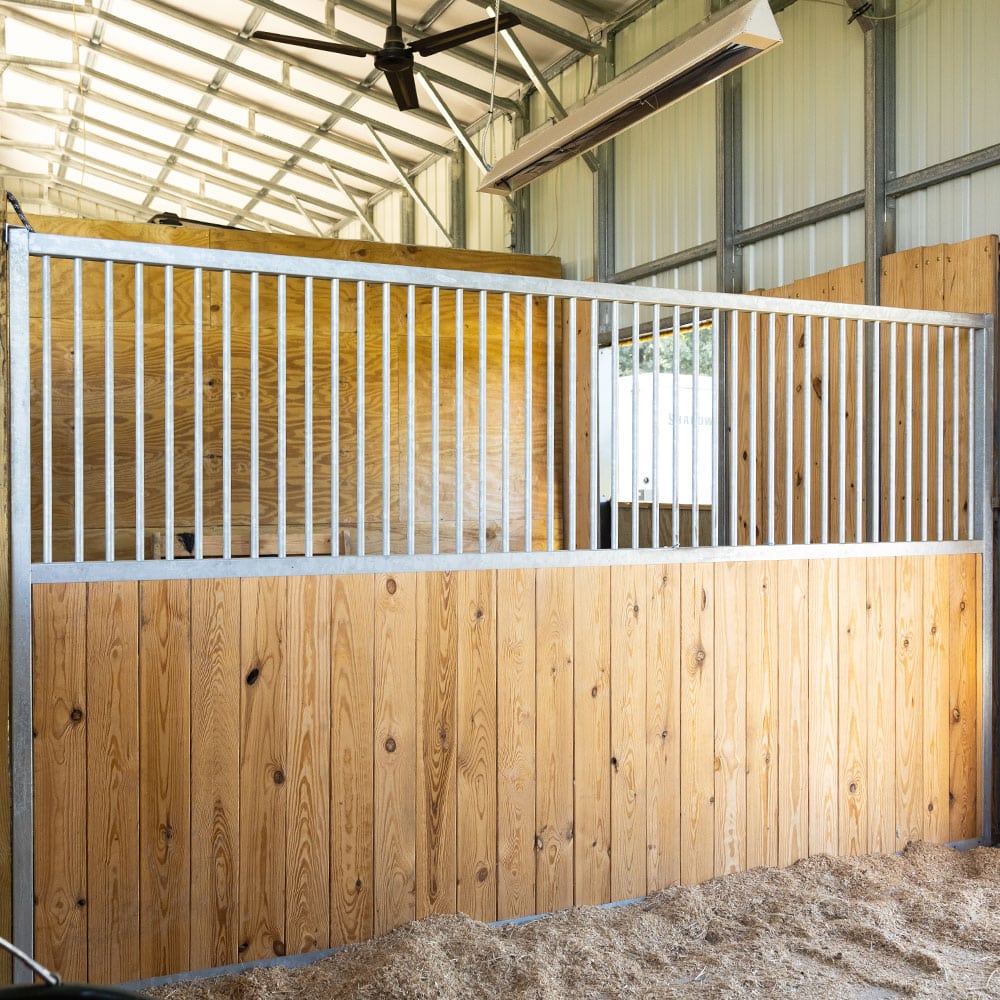

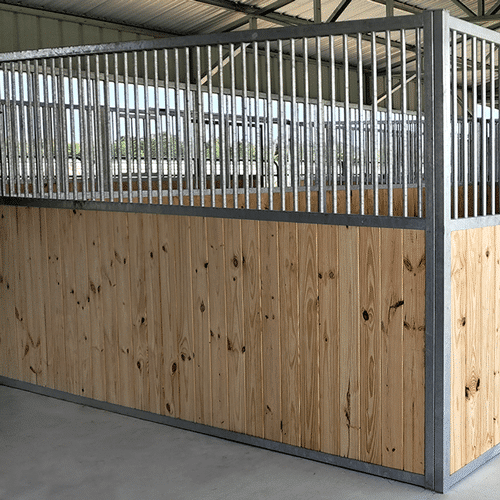

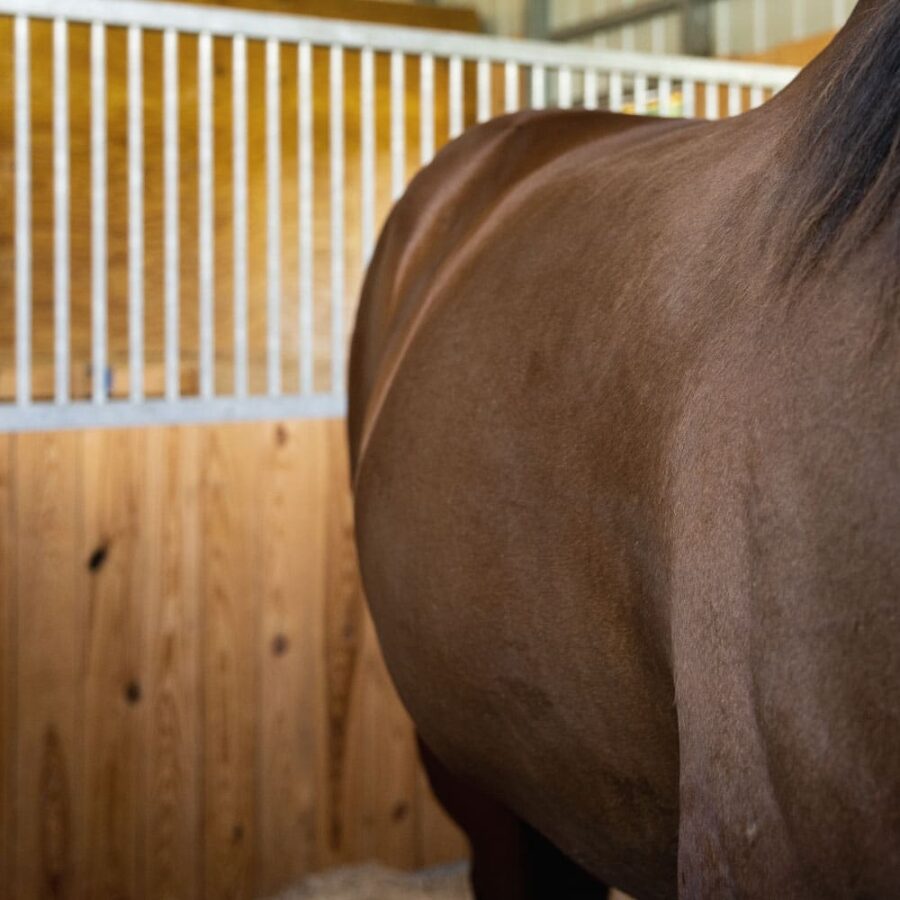

The Dublin stall grilled partition allows fresh air to circulate through the stalls with the added grillwork. The grillwork also allows your horses to socialize with each other. Dublin stalls are constructed of hot-dip galvanized steel, 14-gauge frame and features hidden interior welds and offers the best type of rust protection. RAMM has the industry’s premier hot-dip galvanization for horse stalls.
Length: 10′ or 12′ (Custom sizes available upon request.)
Finish: Hot-Dip Galvanized *RAMM has the industry’s premier hot-dip galvanization for horse stalls. Custom powder coat colors available.
Bar Gauge: 16-gauge
Channel Gauge: 14-gauge

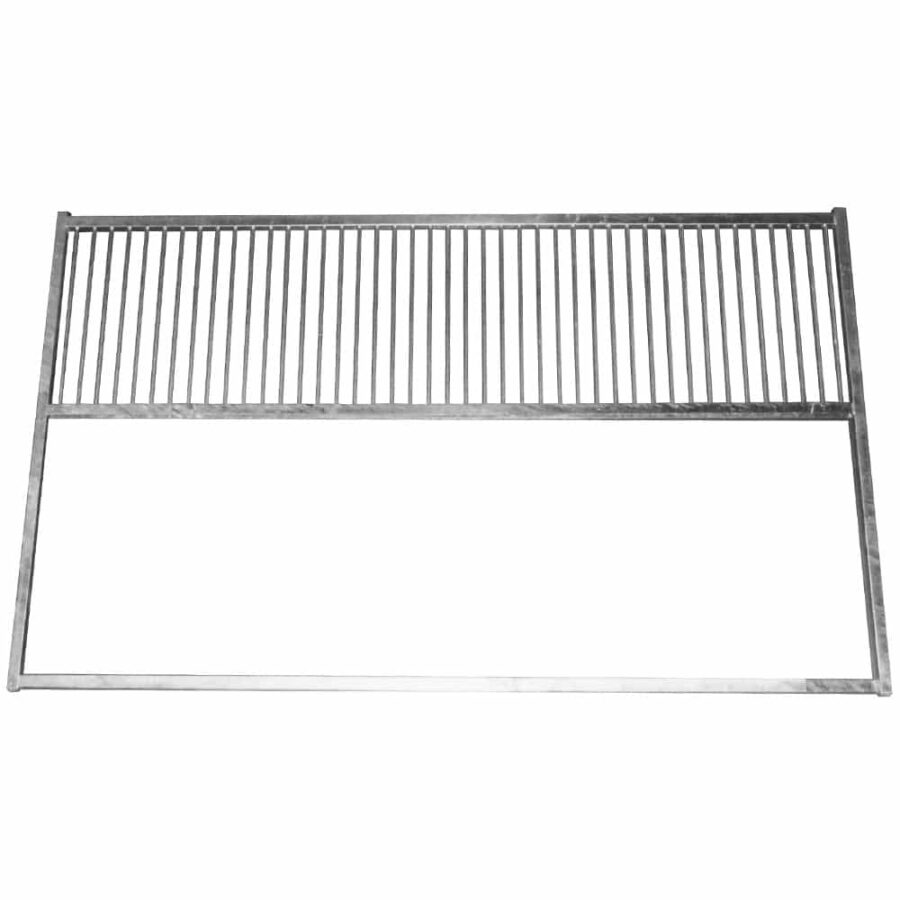

Frame Gauge: 2″ x 2″ 14-gauge

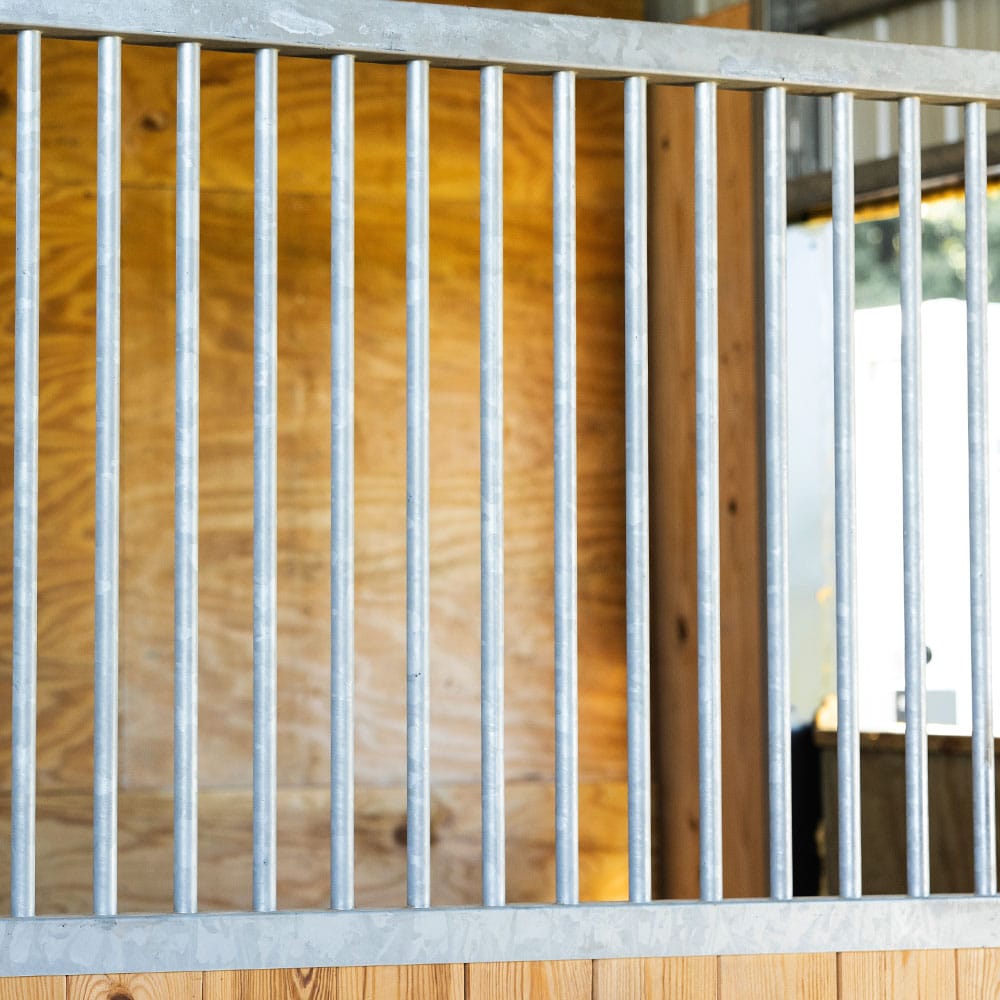

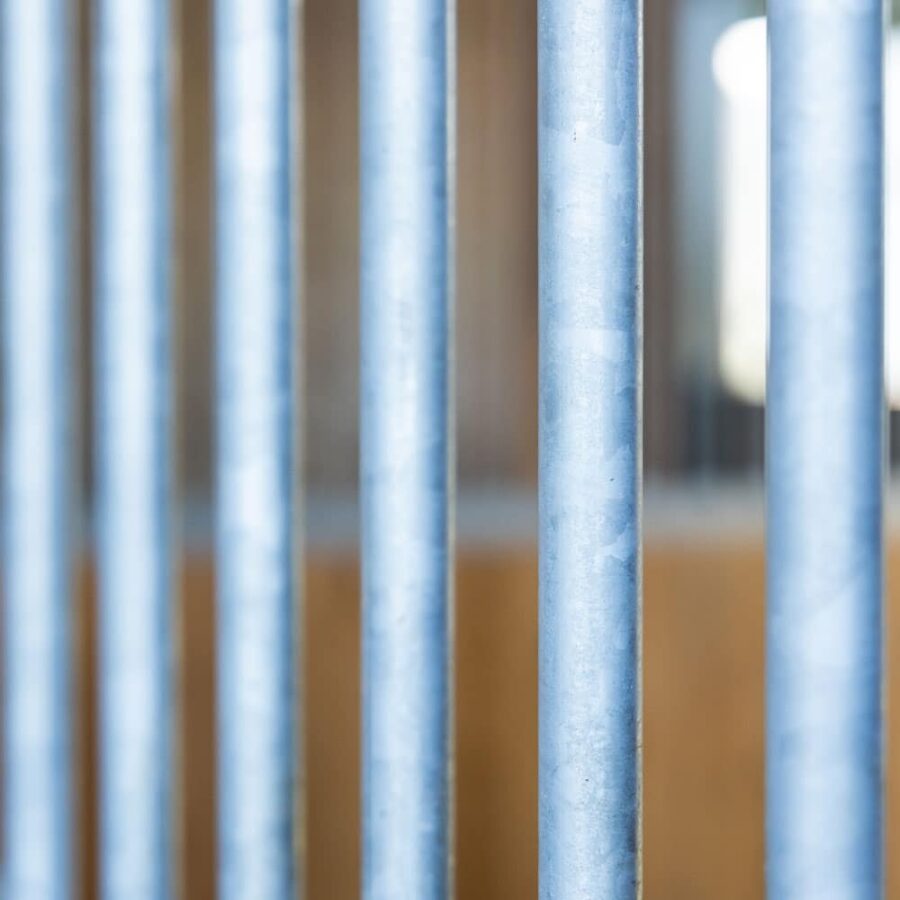

Bar Spacing: 3 1/4″
Bar Diameter: 7/8″
Bar Height: 33″
Center Bar Height: 48 1/4″
Floor to Top of Header: Top of Front is 84″, Top of Front with Track Piece is 85 3/8″”
Floor to Bottom of Bars: 48 5/8″

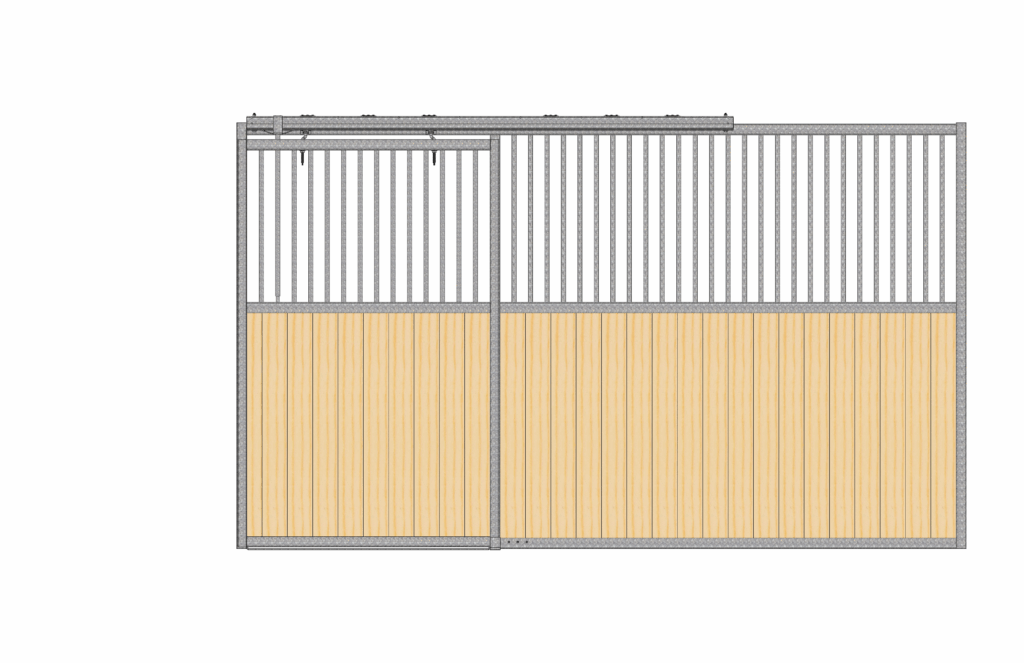

Compatibility: Dublin Stall Fronts
Wood Direction: Vertical *Note: You supply wood to save with freight costs.
<!– Kit Includes:

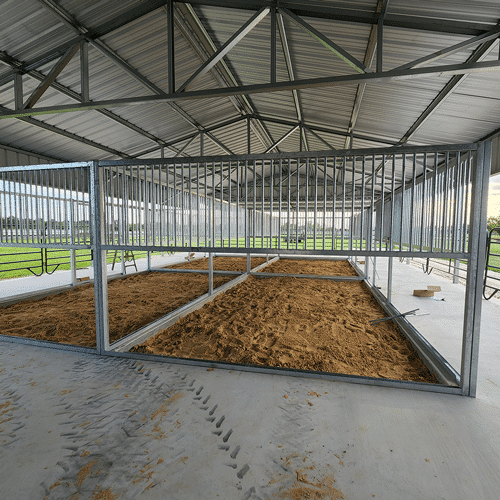

Installation: This is a freestanding horse stall system. Support posts are not required for installation, but can be installed with wood or metal support posts. Connectors snugly hold panels together.
Shipping: This item ships via LTL freight carrier, accurate shipping costs cannot be calculated on our ecommerce site. Please contact one of our account managers at 1-800-434-6296 for shipping details. For more information on LTL shipping requirements follow the inks below.
Warranty: 1-Year Warranty on Workmanship.
Made in the USA.
Below are links to installation instructions and literature regarding Dublin horse stalls. They are in a PDF format, which you can save and print for future reference:
Dublin Stall Installation Instructions
Portable Panel Stall Installation Instructions – Square Track System
