Essex Feed Opening Kit
Enhance your stall fronts and streamline your daily chores with the Essex Standard Feed Opening Kit. Feed your horses directly from the outside of the stall to save time and add exceptional convenience to your barn.
Compatibility: Essex Stalls
Proudly Made in the USA. No imported horse stalls—just American craftsmanship you can trust.
Transform your daily feeding routine with the Essex Standard Horse Stall Feed Opening. This kit provides an economical, highly effective way to feed your horses directly from the barn aisle. By upgrading your stall fronts with this opening, you eliminate the need to enter the stall during busy mealtimes, keeping both staff and horses safe while speeding up your morning and evening chores.
Beyond its practical benefits, the Essex feed opening kit elevates the overall look of your barn. Install this smart upgrade to bring a beautiful, professional finish to your stall fronts while maximizing everyday functionality.
Key Benefits:
-
Maximize Efficiency: Distribute grain quickly from the aisle to save valuable time and effort.
-
Enhance Safety: Keep farmhands securely outside the stall when feeding eager or anxious horses.
-
Elevate Aesthetics: Integrate a clean, polished look into your existing Essex stall fronts.
-
Cost-Effective Upgrade: Experience premium functionality without the premium price tag.
Kit Includes:

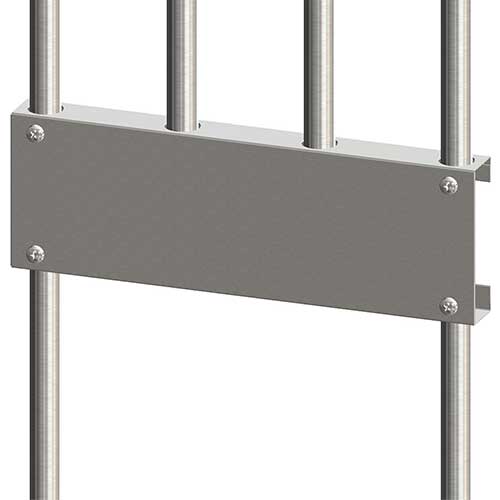

- 1- Essex Feed Opening Plate
- 4- 8-18 x 3/4″ Hex Head Self-Driller for Feed Opening
- 2- 1-3/8″ Feed Opening Plugs
- 2- 7/8″ Bar Grommets
Installation: Decide where you want the feed opening to be located. Cut two of your 3/4″ horse stall grill bars to the desired length (bars cut to 22″ will give you approximately a 12″ opening). Slide the feed opening plate over the two outer bars of the opening and let it rest on the bottom grill channel. Insert the two cut bars into the top grill channel and slide the feed opening up until it is tight. Lastly, use the 8-18 x 3/4″ hex hard self-drilling screws to hold the feed opening plate in place through the holes in the feed opening plate.
Below is a link to the installation instructions for our Essex standard horse stalls in a PDF format, which you can save and print for future reference:
This item ships via a ground delivery service.
$22.70
In Stock
Is there anything else you need for your project?
