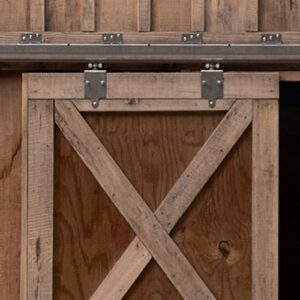

90-Degree Premium Track Trolley and Door Hanging Kit, 2-Pack

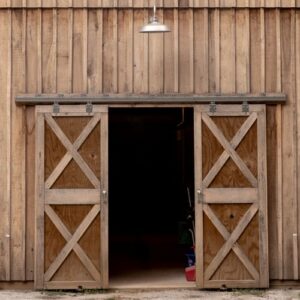

Ensure smooth, reliable movement for your barn doors with the 90° Premium Track Trolley Kit. Designed for heavy-duty use, this complete set includes a pair of trolleys and all the necessary installation hardware. It easily accommodates door thicknesses from 1-3/8″ to 2-3/8″ and boasts a massive weight rating of up to 600 lbs. Perfectly compatible with the Derby horse stall system or traditional sliding barn doors.

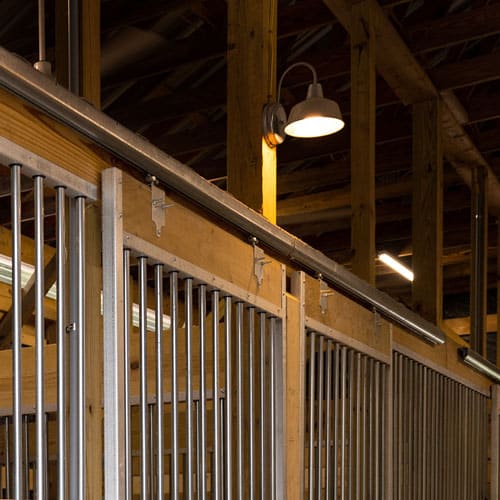

Compatibility: Derby Stalls and Barn Doors
Proudly Made in the USA. No imported horse stalls—just American craftsmanship you can trust.
Smooth Operation with the 90° Premium Track Trolley Kit

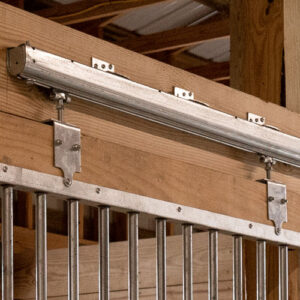

A heavy stall door requires heavy-duty hardware to function safely and smoothly. The 90° Premium Track Trolley Kitprovides everything you need to hang your barn doors securely. Whether you are upgrading an existing stall or building a brand-new facility, these trolleys ensure your doors glide effortlessly on their tracks, day in and day out.
Finish: Galvanized
Material: Heavy-Duty Galvanized Steel
Weight Rating: 300 pounds per trolley (600 pounds per set)
Door Compatibility: Doors with thickness of 1-3/8″ – 2-3/8″.
Track Compatibility: Round Track
Includes: Two square track trolleys and door hanging hardware.
Installation: All hardware is included with the trolleys for installation.

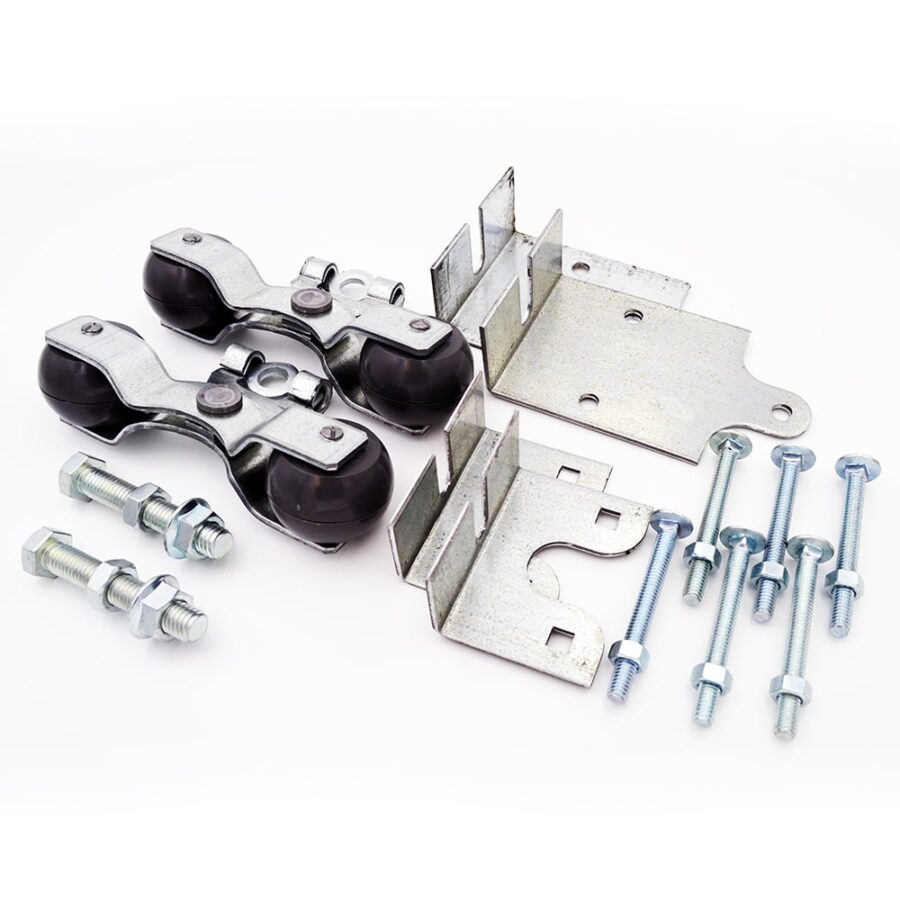

Kit Includes:

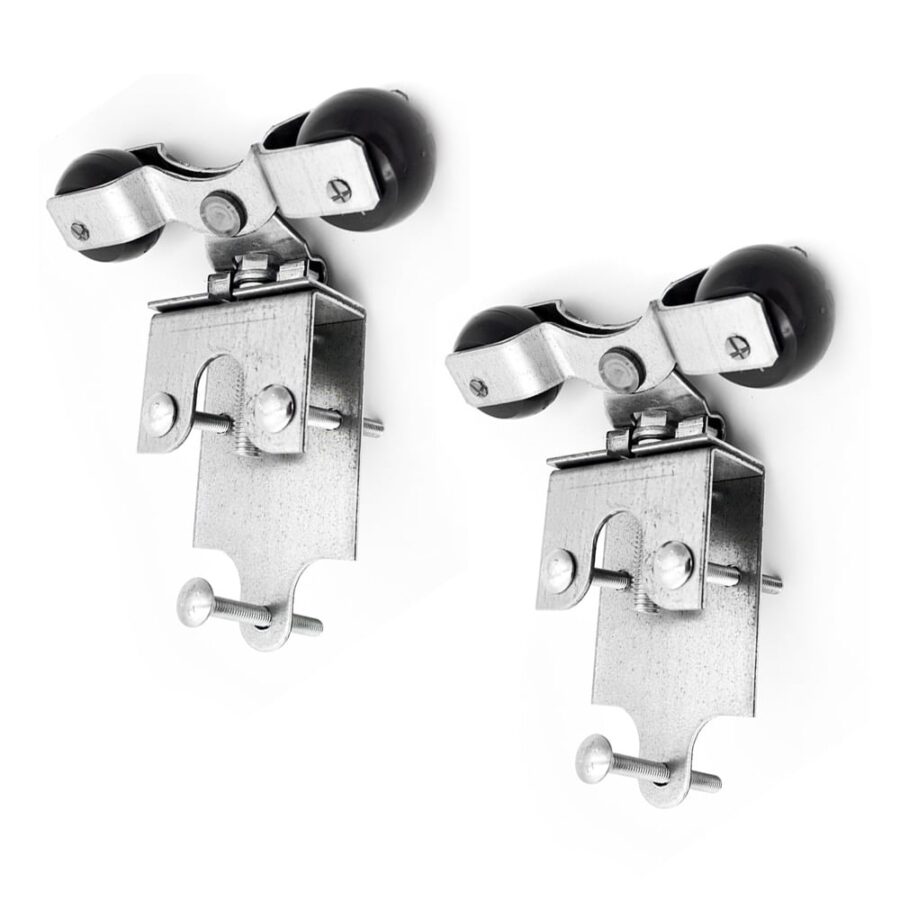

- 2 – 90° Premium Track Trolleys
- All of the mounting hardware & screws needed for installation are included.
Below is a link to the installation instructions for the 90° Premium track trolley brackets (used in the Derby horse stall series) in a PDF format, which you can save and print for future reference:
90° Premium Track Trolley Brackets Installation Instructions
Installation:

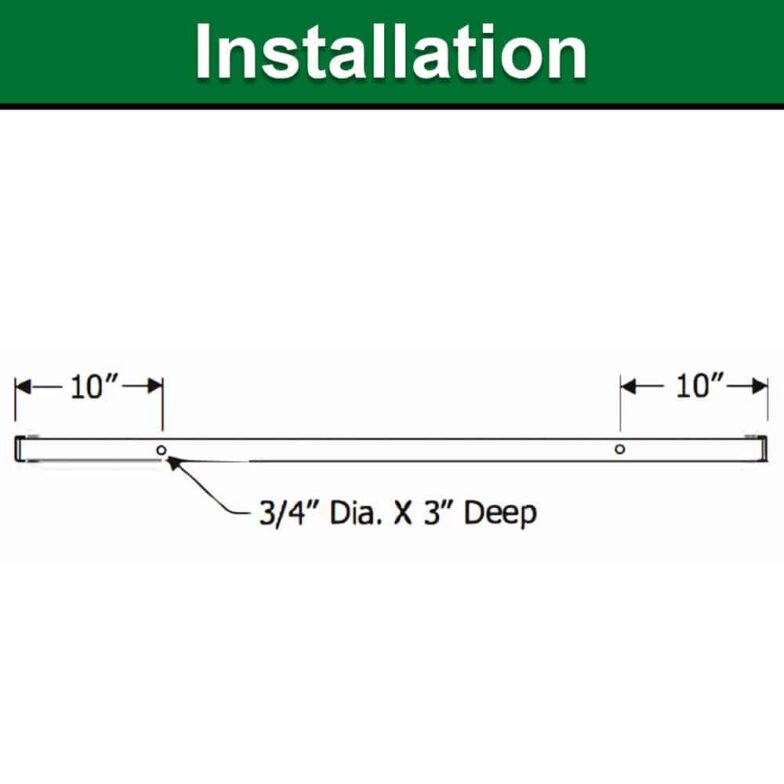

- Measuring 10″ from the outside edge of the door, drill two 3/4″ diameter holes approximately 3″ deep.
- Clean out the holes before proceeding.

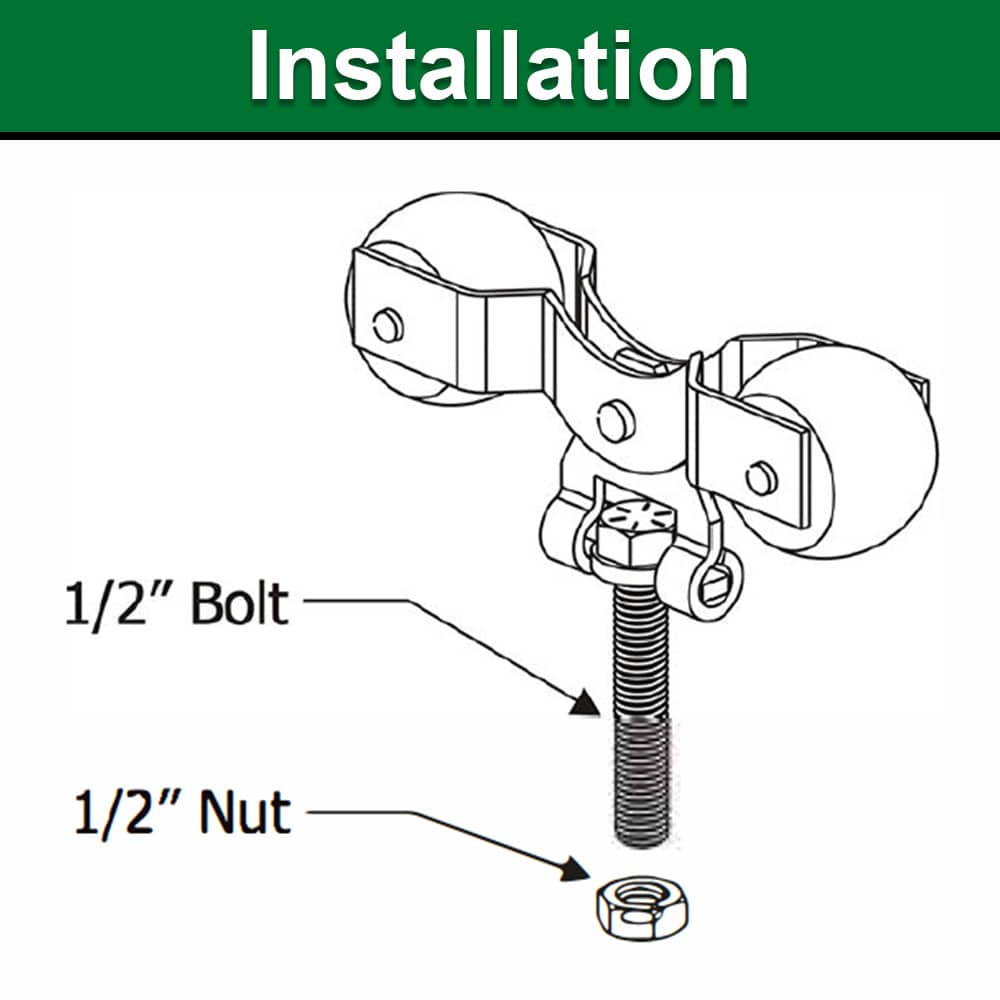

- Insert the 1/2″ bolt through the hole in the trolley.
- Thread the 1/2″ nut all the way up on the bolt. Do not tighten.

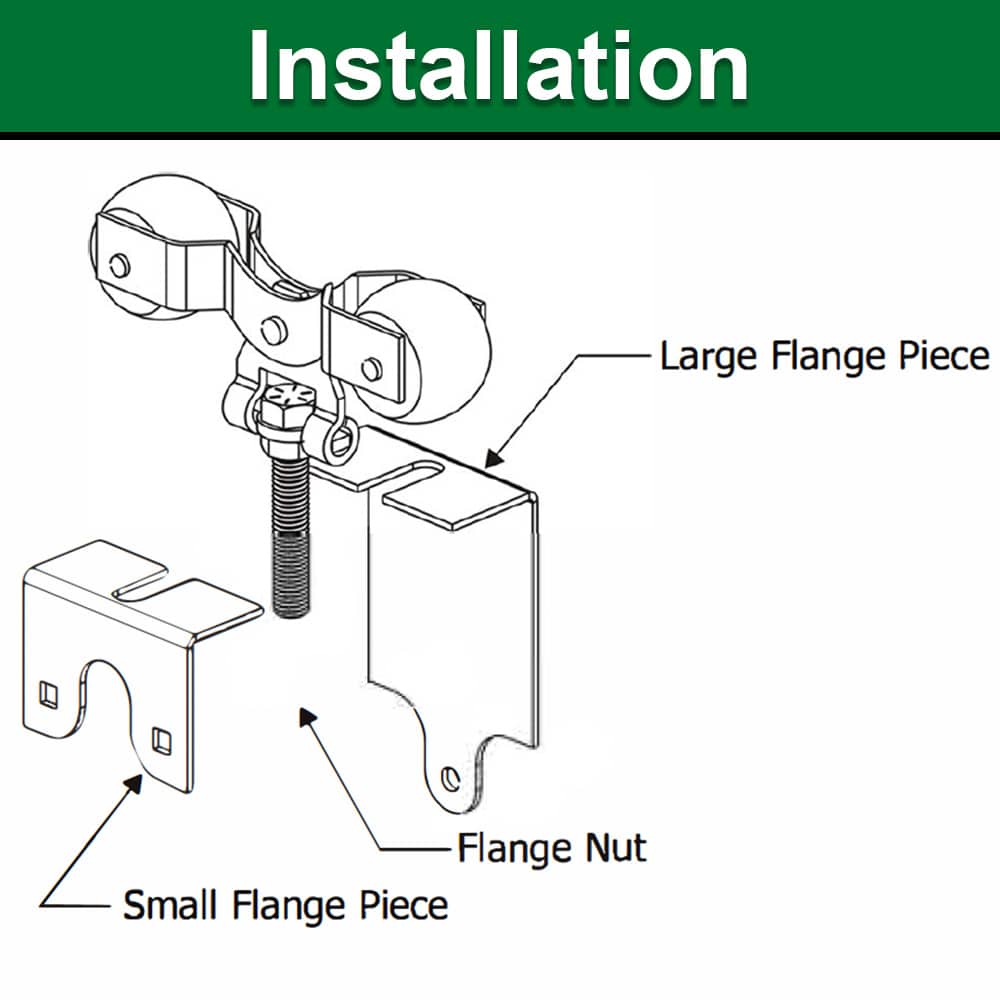

- Slide a large and a small flange piece around the 1/2″ bolt into the slots. Overlap the large flange piece on top of the small flange piece.
- Screw on the flange nut. Do not tighten; final adjustments will be made after the door is hung.

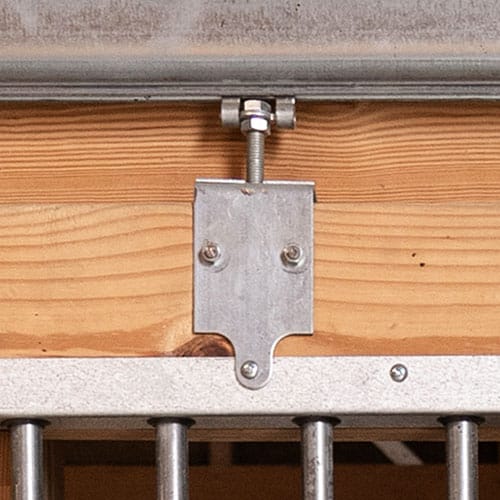

- Align the trolley assembly over the top of the door with the 1/2″ bolt going into the drilled hole.
- Adjust the flange pieces to fit around the door. *The large flange piece will be on the outside face of the door and the small flange piece faces into the stall.
- Drill a 5/16″ hole completely through the door at the top two hole locations in the large flange piece.

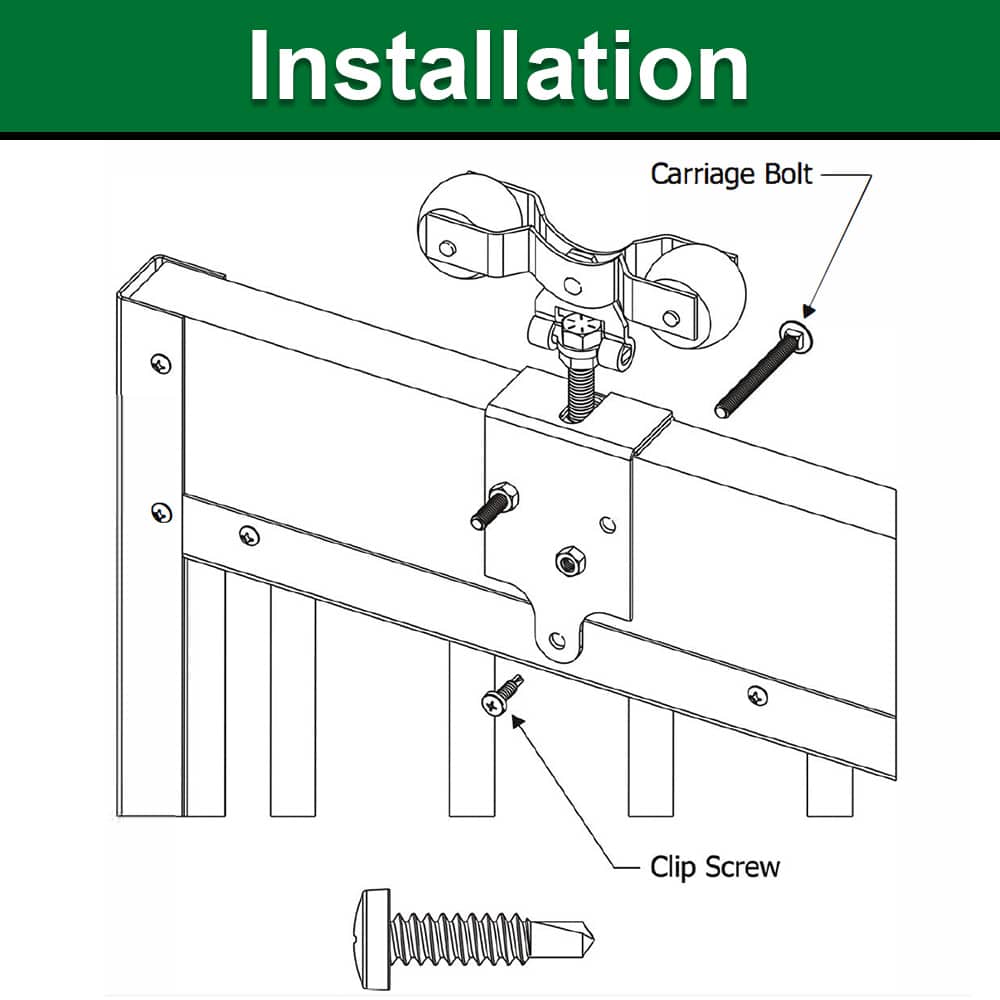

- Insert carriage bolts from the stall side of the door through drilled holes in the door.
- Attach nuts and tighten.
- Fasten a clip screw through the bottom hole into the channel.
- Hang the door and make any necessary adjustments by moving the 1/2″ nut and the flange nut up or down.
$45.47
In Stock
