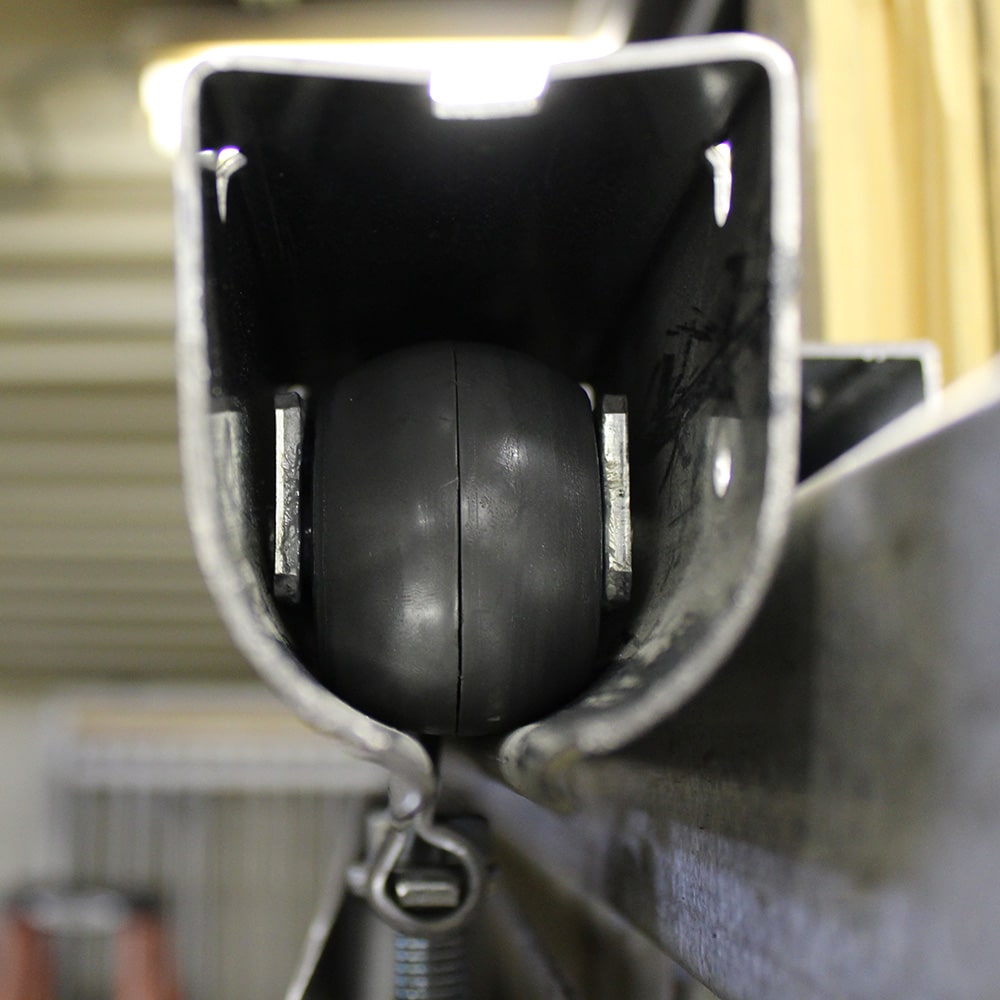

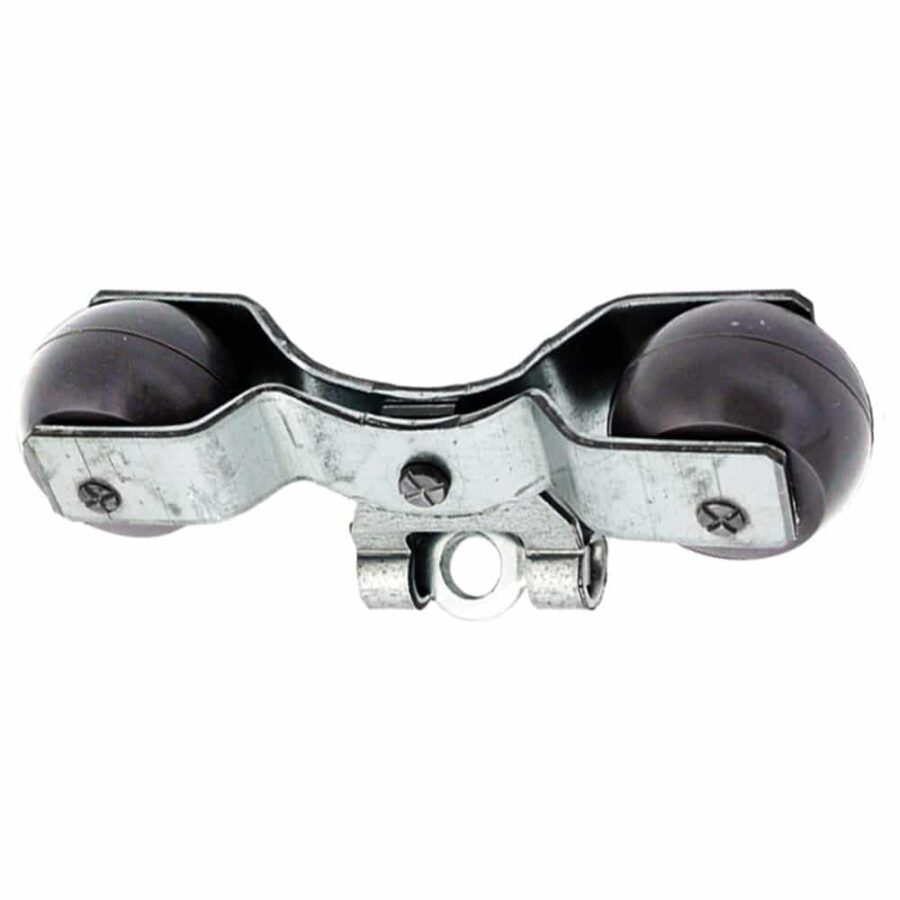

The Premium track trolley is used for hand-sliding stall doors in the 8′ Premium track. Sold individually, two trolleys and two offset trolley bolts {sold separately; determined by stall series} are required for each horse stall door installation. The trolleys have two rugged nylon wheels and sealed, greased roller bearings to ensure a smooth operation for years. There is no metal-to-metal contact, meaning this system functions very quietly and the greased fitting allows for a “one-touch” operation.

Quantity: Sold Individually (one Premium track trolley with nylon wheels)

Height: 3″

Width: 1 3/4″

Measurements:

From outside-to-outside of each wheel is 7″
From center-to-center of each wheel is 5″
The diameter of the hole for the bolt fits a 1/2″ bolt

Finish: Pre-Galv

Material: Heavy-Duty Galvanized Steel

Weight Rating: RAMM’s 8′ Premium track supports doors weighing up to 600 lbs.

Stalls Compatibility:

Track Compatibility: 8′ Premium Track

Below are links to PDFs of the installation instructions for all of the compatible horse stalls, which you can save and print for referencing:

Installation:

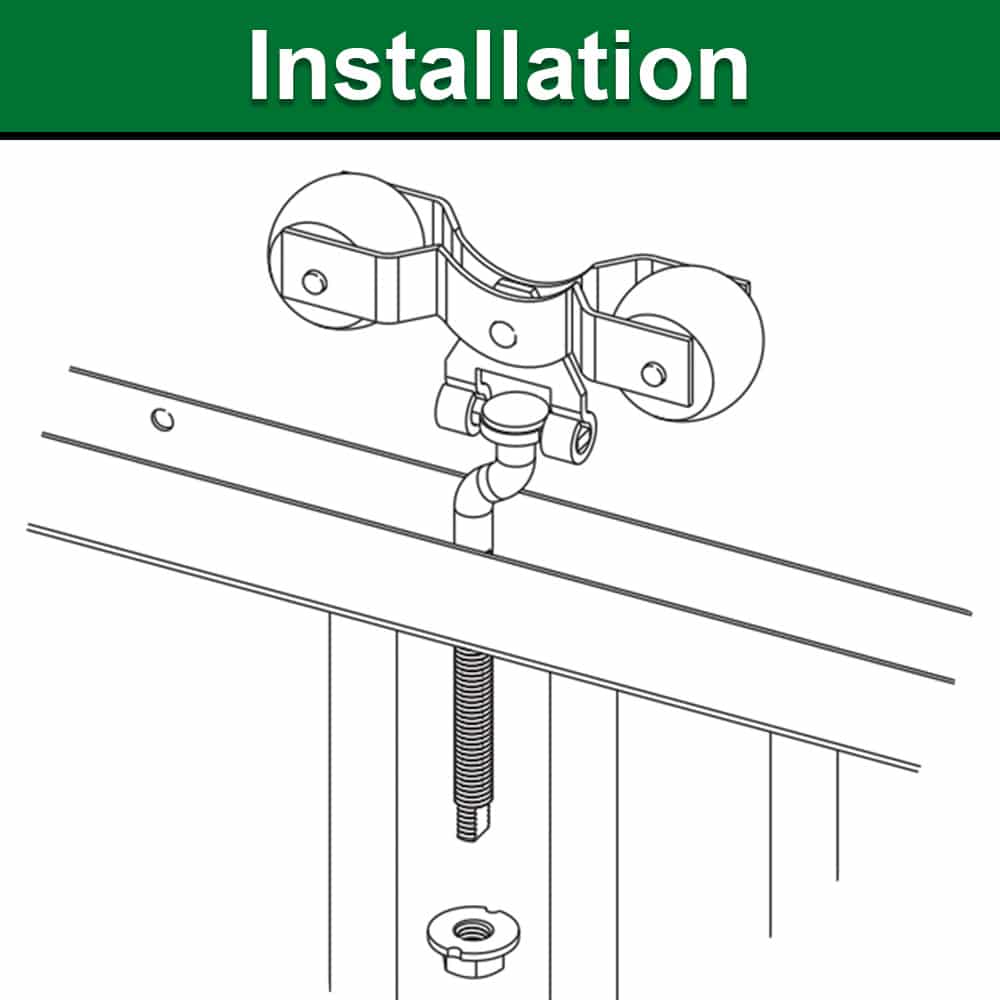

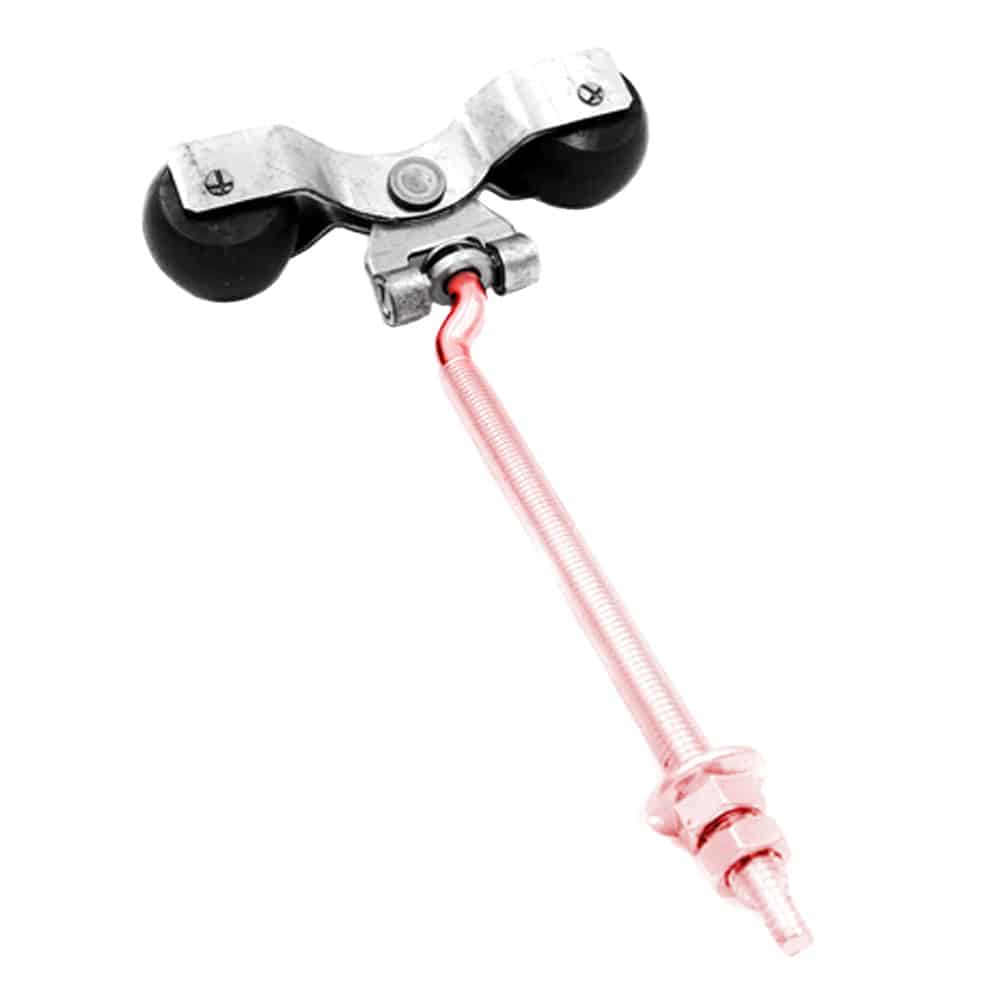

Insert the offset trolley bolt {sold separately; determined by stall series} through the hole in the Premium track trolley wheel assembly.
Thread the trolley bolt nut approximately 3-3/8” onto the offset trolley bolt.

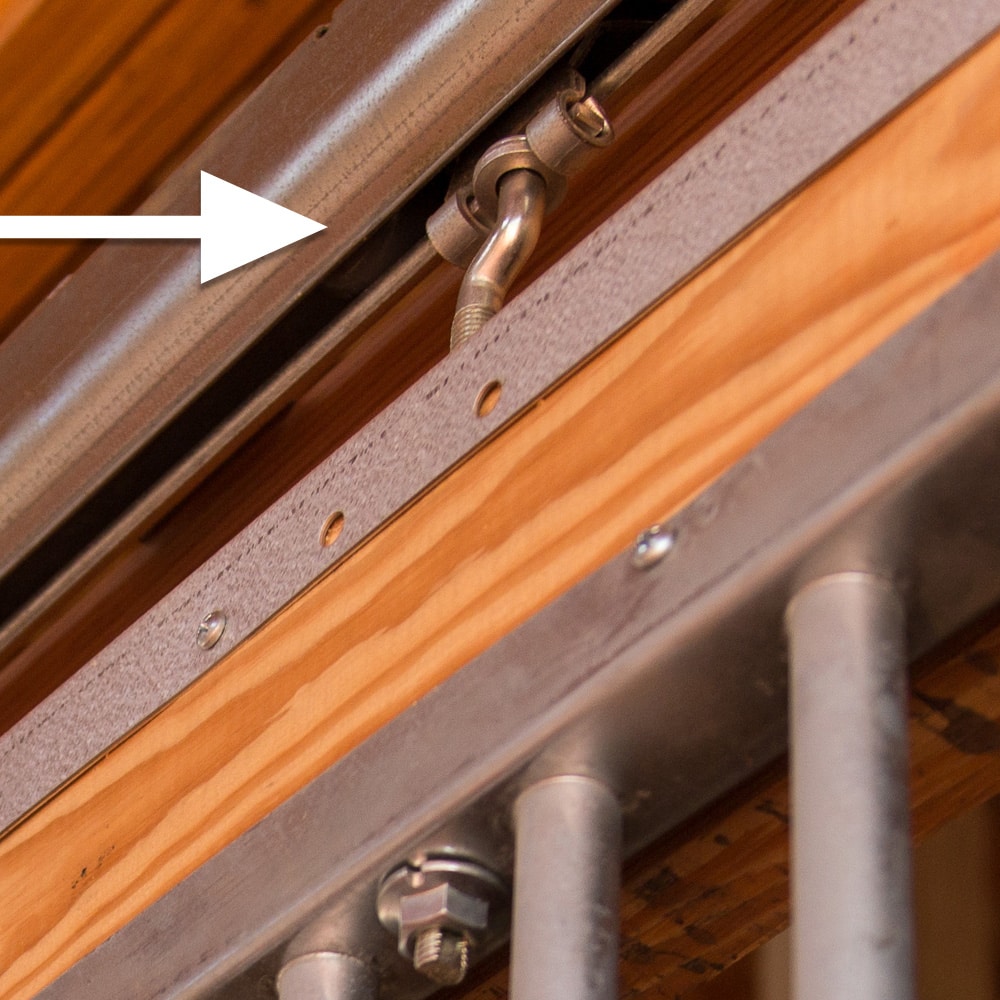

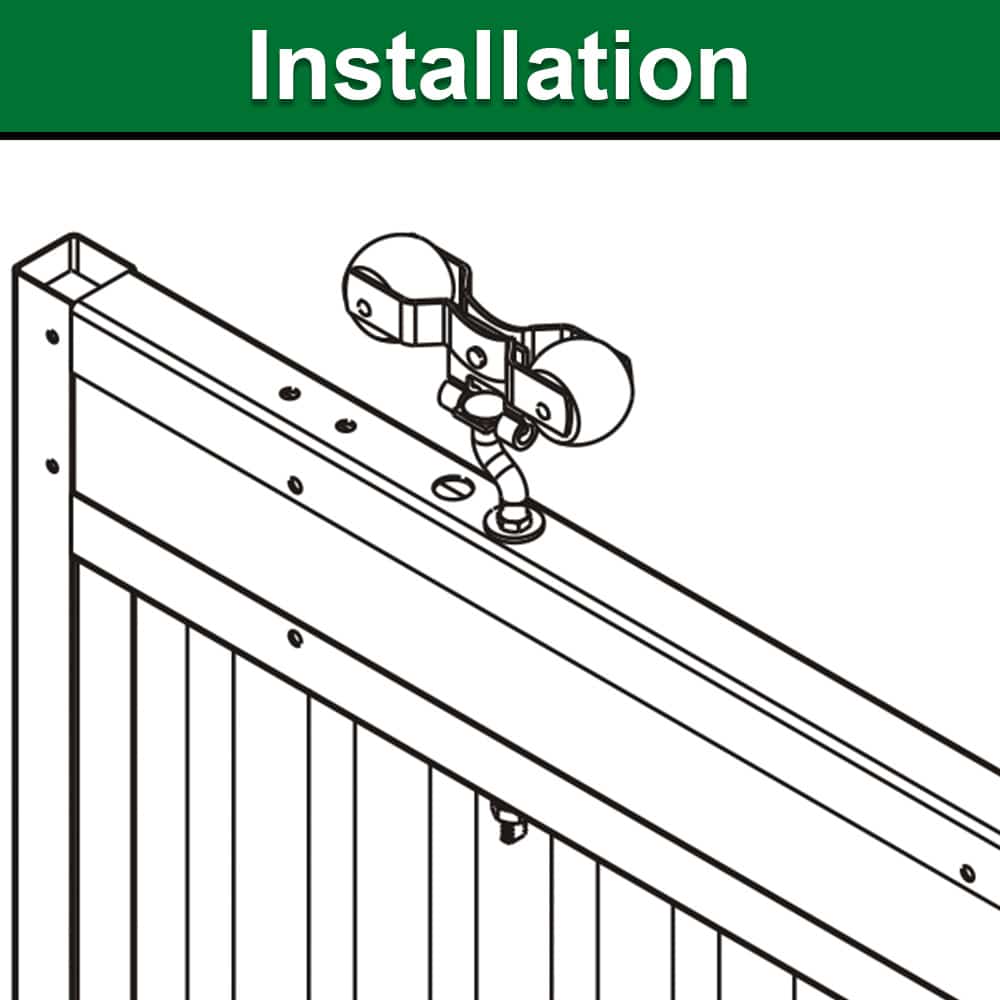

Feed the offset trolley bolt through the holes from the top of the door header.
Thread trolley bolt flanged nut on the end of trolley bolt and hand-tighten. *Do not fully tighten until the stall front is complete.
Final adjustments in the door alignment can be made after the door is hung on a track.
The trolley bolt can be rotated to adjust the space between the doorpost and the door.
