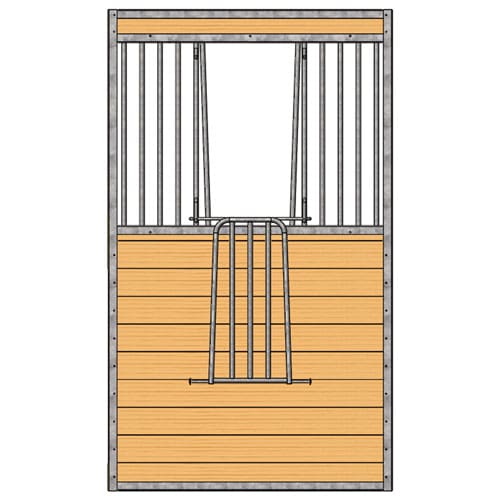

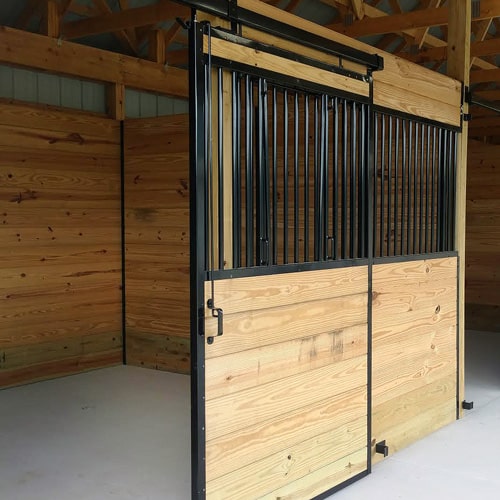

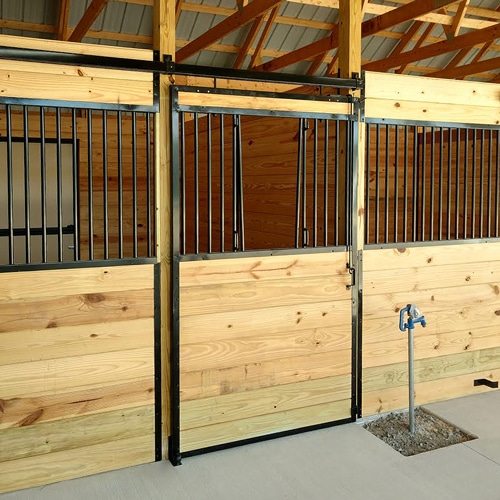

Oxford V-Door Kit
Let the fresh air in with an Oxford welded v-door; ventilation in your stalls is key. With the Oxford welded v-door your horses will get the fresh air they need in the safety of their stalls. Additionally, the v-doors are removable.
Compatibility: Oxford Stalls
[yith_wcwl_add_to_wishlist]
Let the fresh air in with an Oxford welded v-door; ventilation is key. With the Oxford welded v-door your horses will get the fresh air they need in the safety of their stalls. RAMM’s v-doors can be removed from the stall door if needed. Oxford welded horse stalls are constructed of hot-dip galvanized steel (14-gauge frame), feature hidden interior welds, and offer the best type of rust protection available!
*Note: V-Door Insert is NOT included. You can purchase it here.
*Note: Wood lumber is not included; we recommend tongue and groove wood for all of our horse stall systems.
Finish: Hot-Dip Galvanized or Powder-Coated Black (*RAMM is the industry’s premier hot-dip galvanizer for horse stalls.)
Bar Gauge: 16-gauge
Channel Gauge: 14-gauge
Bar Spacing: 3 1/4″
Bar Diameter: 7/8″
Bar Height: 33 1/2″
Door Width: 51 1/4″
Door Opening Width (Standard): 48″
Door Height: 86 3/4″
Floor to Top of Header: 93″
Floor to Bottom of Bars: 48 1/2″
Wood Direction: Horizontal (*Note: Wood lumber is not included in the kit.)
Kit Includes:
- 1 – Oxford V-Door
- 1 –Â 48″ Stall Door Top Channel
- 1 –Â 48″ Stall Door Bottom Channel
- 30 –Â #12 x 1-1/4″ Phillips Pan Head Stall Screws
Not Included: V-Door Insert is NOT included. You can purchase it here.
Warranty: 1-Year Warranty on Workmanship.
*Note: Must be installed with wood or metal support posts. Wood lumber is not included in the kit.
Made in the USA.
