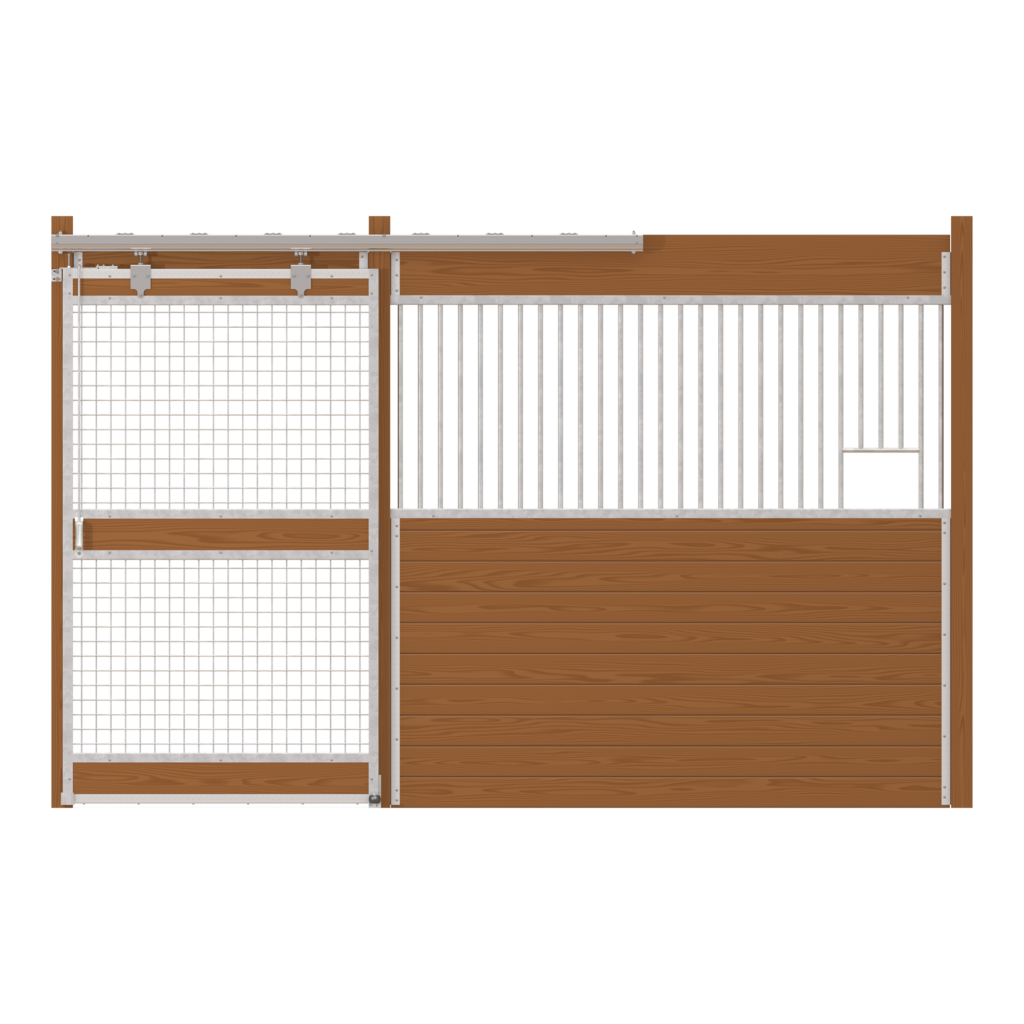

Oxford Grill Top/Mesh Bottom Door Kit

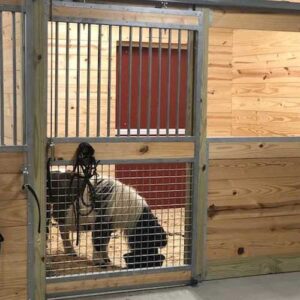

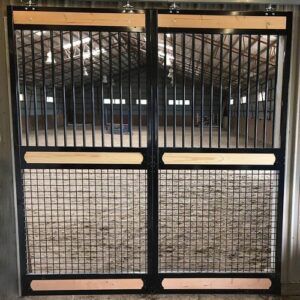

This Oxford welded grill top with mesh bottom door is safe for all ages of horses. The mesh bottom is great for the young and the top grill section prevents horses’ hooves getting caught if they rear up.
Compatibility: Oxford Stalls
[yith_wcwl_add_to_wishlist]
This Oxford welded grill top with mesh bottom door is safe for all ages of horses. The mesh bottom is great for the young and the top grill section prevents horses’ hooves getting caught if they rear up. Both allow for ample amounts of fresh air to enter the horse stall. Oxford welded horse stalls are constructed of hot-dip galvanized steel (14-gauge frame), feature hidden interior welds, and offer the best type of rust protection available! *Note: Wood lumber is not included; we recommend tongue and groove wood for all of our horse stall systems.
Finish: Hot-Dip Galvanized or Powder-Coated Black *RAMM has the industry’s premier hot-dip galvanization for horse stalls.)
Bar Gauge: 16-gauge
Channel Gauge: 14-gauge
Mesh Bottom: 1/4″ mesh steel with 2″ x 2″ square holes
Bar Spacing: 3 1/4″
Bar Diameter: 7/8″
Bar Height: 33 1/2″
Door Width: 51 1/4″
Door Opening Width (Standard): 48″
Door Height: 86 3/4″
Floor to Top of Header: 93″
Floor to Bottom of Bars: 48 1/2″
Wood Direction: Horizontal (*Note: Wood lumber is not included in the kit.)
Warranty: 1-Year Warranty on Workmanship.
*Note: Must be installed with wood or metal support posts. Wood lumber is not included in the kit.
Made in the USA.
Below are links to installation instructions and literature regarding our Oxford welded horse stalls. They are in a PDF format, in which you can save and print for future reference:
